ANSI / ASME B16.5 Carbon Steel Socket Weld Flange

ASME B16.5 Socket Weld Flange Manufacturer in India is typically used on smaller sizes of high pressure pipes. BS-4504 Socket weld Flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This makes smooth bore and improved flow of the liquid or gas inside the pipe. Socket Weld Reducing Flange with a hub has specifications from 1/2" to 24". Standard MSS-SP-44 ASTM A182 SS socket weld blind flange available in all material grades, specifications and sizes.

Suppliers of Stainless Steel Socket Weld Reducing Flange, ANSI B16.5 SWRF Flange in Mumbai, India.

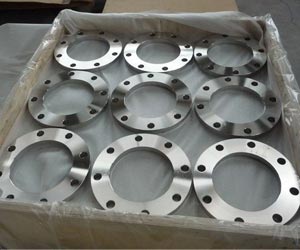

ASME B16.5 Carbon Steel Socket Weld Flange Manufacturer in India

ASME B16.5 Carbon Steel Socket Weld Flange Manufacturer in India

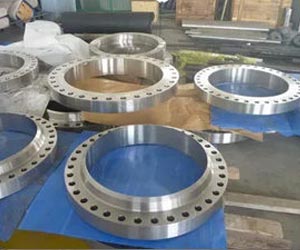

Socket Weld Reducing Flange Distributor in Mumbai

Socket Weld Reducing Flange Distributor in Mumbai

ASME B16.5 Stainless Steel SWRF Flanges

ASME B16.5 Stainless Steel SWRF Flanges

ANSI B16.5 Class 150 Socket weld Flanges are typically provided with a flat face, raised face, or RTJ facing. Socket weld ring joint Flange is necessary for socket weld pipe flanges. The standard height is 1/16 inch for ASME B16.5 SWRF Flanges below 400#. Whereas for Socket Weld Pipe Flanges of 400# and up, the standard socket weld pipe flange raised face height is 1/4". Flat Face Socket weld Flanges were at first developed to be use on smaller sized high pressure piping systems. Duplex Steel socket weld rtj flange are known for good performance, resistance against corrosion and durability. Our Socket Weld Flange A105 is fabricated with the wall thickness having the same dimensions of the matching pipes.

ANSI B16.5 Socket weld Flanges covers pressure rating classes with designations such as 150, 300, 400, 600, 900, and 1500 in sizes NPS 1/2 through NPS 24. The fatigue strength of the Carbon Steel Socket weld Flange is about 50% greater as compared to double-welded Slip On flanges. Customary units with diameter of bolts and bolt holes for 600# socket weld flange dimensions expressed in inch units.

Table of Content

  • What is ASME B16.5 Socket Weld Flanges ?
  • Check the rates of Socket Weld Flange Manufacturer in India
  • Stainless Steel Socket weld Flange material specification chart
  • Types of ASME B16.5 SWRF Flanges
    • ANSI b16.5 Raised Face Socket Weld Flange
    • Socket weld flange dimensions class 300
    • ASME B16.47 Series a Socket Weld Blind Flanges
    • MSS SP-44 Socket Weld Hub Flange
    • EN 1092-1 Ring joint socket weld flange
    • ASME B16.5 Socket Weld Pipe Flange
    • ASME B16.5 SWRF Flange
    • PN16 Socket Weld Flange
    • ASME B16.47 Series b Flat Face Socket Weld Flanges
    • SWRF Flanges Dimensions Class 150



    • Forged Socket Weld Pipe Flange
    • AWWA C207 Class d Hydraulic Socket Weld Flange
  • Pressure Class for ASTM A182 SS Socket Weld Blind Flange
  • Dimensions Table of ASME B16.5 Socket Weld Flange
  • ANSI B16.5 Class 150 Socket weld Flanges Dimensions
  • Class 300 Socket Weld Flange Schedule Dimensions
  • Class 600 Socket Weld Flange Standard Dimensions
  • Socket Weld Flange Weight Table
  • JIS Socket Weld Flange Dimensions
  • Other Types of ASME B16.5 Socket Weld Flange Manufacturer in India

What is ASME B16.5 Socket Weld Flanges ?


Socket Weld Flange Manufacturer in India

Socket Weld Flange Manufacturer in India


ASME B16.5 Socket Weld Flanges have a shoulder within the flange that acts as a guide to line at the depth at which the pipe is welded to the flange. MSS SP-44 SS Socket Weld Pipe Flange are fabricated by inserting the pipe end into the flange until it bottoms out against the shoulder, and then retracting the pipe 1/8 in before welding it in place. Stainless Steel Socket weld Flanges are available in pressure from 150# and up and pipe schedule 40 to schedule 160.

Get MSS SP-44 SS Socket Weld Pipe Flange Dimensions & EN 1092-2 PN16 Socket Weld Flange manufacturer in India, SS Socket Weld Flanges Price List in Mumbai.

Check the rates of Socket Weld Flange Manufacturer in India


ASME B16.5 SWRF Flanges Price Per Piece in India Socket Weld Rtj Flange Price in INR Socket Weld Reducing Flange Price in Saudi Riyal Socket Weld Raised Face Flange Price in UAE Dirham
FLANGE: 6 NPS, ASTM A 105N, CL600#, WN, RF, SMF(Ra=3.2-6.3μm), SCH80, NACE MR-0175/ISO 15156, ASME B16.5 Price in India Rs. 849.32 Saudi Riyal 44.62 UAE Dirham 43.70
FLANGE: 1 NPS, ASTM A 105N, CL600#, SW, RF, SMF(Ra=3.2-6.3μm), SCH160, NACE MR-0175/ISO 15156, ASME B16.5 Price in India Rs. 995.63 Saudi Riyal 52.31 UAE Dirham 51.23
FLANGE:3/4 NPS, ASTM A 105N, CL300#, SW, RF, SMF ( Ra=3.2 - 6.3μm), SCH160, NACE MR-0175/ISO 15156, ASME B16.5 Price List Rs. 2241.07 Saudi Riyal 117.74 UAE Dirham 115.32
FLANGE: 1 NPS, ASTM A 105N, CL300#, SW,RF, SMF ( Ra=3.2 - 6.3μm), SCH160, NACE MR-0175/ISO 15156, ASME B16.5 Cost in Mumbai Rs. 2498.00 Saudi Riyal 131.24 UAE Dirham 128.54
Price of FLANGE: 8 NPS, ASTM A 105N, CL600#, WN, RF, SMF(Ra=3.2-6.3μm), SCH80, NACE MR-0175/ISO 15156, ASME B16.5 in Mumbai Rs. 5288.63 Saudi Riyal 277.85 UAE Dirham 272.14

Stainless Steel Socket weld Flange material specification chart


ASME B16.5 Socket weld flanges Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
ASTM A182 SS socket weld blind flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Socket weld Flanges
Socket weld raised face flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Socket weld Flanges
Socket weld Raised Face Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Socket weld Flanges, ASME Socket weld Flanges, BS Socket weld Flanges, DIN Socket weld Flanges, EN Socket weld Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
JIS ASME B16.5 SWRF Flanges 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Socket weld Flanges
Coating aluminum socket weld flange Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Socket weld Flanges
EN socket weld flange a105 6Bar 10Bar 16Bar 25Bar 40Bar Socket weld Flanges
Connect Type/ Flanges Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
ANSI B16.5 Socket weld Flanges Test UI trasonic flaw detector, Hydrostatic testing machine, Direct-reading Spectrograph, Magnetic particle detector
socket weld ring joint flange Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

Types of ASME B16.5 SWRF Flanges


ANSI b16.5 Raised Face Socket Weld Flange

ANSI b16.5 Raised Face Socket Weld Flange
DN65, PN20, SCH40, RF, A182 F316 SW Flange


Socket weld flange Dimensions Class 300

Socket weld flange Dimensions Class 300


ASME B16.47 Series a Socket Weld Blind Flanges

ASME B16.47 Series a Socket Weld Blind Flanges
1500#, MSS SP-44, Stainless Steel SW Flange


MSS SP-44 Socket Weld Hub Flange

MSS SP-44 Socket Weld Hub Flange


EN 1092-1 Ring joint Socket weld Flange

EN 1092-1 Ring joint Socket weld Flange


ASME B16.5 Socket Weld Pipe Flange

ASME B16.5 Socket Weld Pipe Flange
PN20, DN50, THK SCH 40, Raised Face, A182 F316 SW Flange


ASME B16.5 SWRF Flange

ASME B16.5 SWRF Flange
PN50, DN25, THK SCH 40, RF End, A182 F304L Socket Welded Flange


PN16 Socket Weld Flange

PN16 Socket Weld Flange


ASME B16.47 Series b Flat Face Socket Weld Flanges

ASME B16.47 Series b Flat Face Socket Weld Flanges


SWRF Flanges Dimensions Class 150

SWRF Flanges Dimensions Class 150


Forged Socket Weld Pipe Flange

Forged Socket Weld Pipe Flange


AWWA C207 Class d Hydraulic Socket Weld Flange

AWWA C207 Class d Hydraulic Socket Weld Flange


ASME B16.47 Series b Socket Weld Orifice Flange Price List in Mumbai, ANSI B16.5 Class 150 SWRF Flanges Dealer in India, Stockholder of Socket Weld Rtj Flange, ASME B16.47 Series a Socket Welded Flange manufacturer.


Pressure Class for ASTM A182 SS Socket Weld Blind Flange


Flanges pressure rating in psig for Socket Weld Flange ASME
Temperature (F°) 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 285 740 985 1480 2220 3705 6170
200 260 680 905 1360 2035 3395 5655
300 230 655 870 1310 1965 3270 5450
400 200 635 845 1265 1900 3170 5280
500 170 605 805 1205 1810 3015 5025
600 140 570 755 1135 1705 2840 4730
650 125 550 730 1100 1650 2745 4575
700 110 530 710 1060 1590 2655 4425
750 95 505 675 1015 1520 2535 4230
800 80 410 550 825 1235 2055 3430
850 65 320 425 640 955 1595 2655
900 50 230 305 460 690 1150 1915
950 35 135 185 275 410 685 1145
1000 20 85 115 170 255 430 715

Dimensions Table of ASME B16.5 Socket Weld Flange


ASME B16.5 Socket Weld Flange Dimensions

ANSI B16.5 Class 150 Socket weld Flanges Dimensions, 150 lb Socket Weld Flange Dimensions & 150# Socket Weld Flange Dimensions


ANSI, ASME, ASA B16.5 150lb/sq.in. SOCKET WELD FLANGE RF
Nominal Size
Outside Diam. Thick. of Flange Diam. of Raised Face Diam of Hub at Base Length Thru Hub Diam. of Bore Depth of Socket No. of Holes Diam. of Holes Approx. Weight Pounds Kg
O C R X Y B D
1/2″ in. 3.5 0.44 1.38 1.19 0.62 0.88 0.38 4 0.62 1
mm. 88.9 11.2 35.1 30.2 15.7 22.4 9.7 15.7 0.5
3/4″ in. 3.88 0.5 1.69 1.5 0.62 1.09 0.44 4 0.62 2
mm. 98.6 12.7 42.9 38.1 15.7 27.7 11.2 15.7 1
1″ in. 4.25 0.56 2 1.94 0.69 1.36 0.5 4 0.62 2
mm. 108 14.2 50.8 49.3 17.5 34.5 12.7 15.7 1
1 1/4″ in. 4.62 0.62 2.5 2.31 0.81 1.7 0.56 4 0.62 3
mm. 117.3 15.7 63.5 58.7 20.6 43.2 14.2 15.7 1
1 1/2″ in. 5 0.69 2.88 2.56 0.88 1.95 0.62 4 0.62 3
mm. 127 17.5 73.2 65 22.4 49.5 15.7 15.7 1
2″ in. 6 0.75 3.62 3.06 1 2.44 0.69 4 0.75 5
mm. 152.4 19.1 91.9 77.7 25.4 62 17.5 19.1 2
2 1/2″ in. 7 0.88 4.12 3.56 1.12 2.94 0.75 4 0.75 7
mm. 177.8 22.4 104.6 90.4 28.4 74.7 19.1 19.1 3
3″ in. 7.5 0.94 5 4.25 1.19 3.57 0.81 4 0.75 8
mm. 190.5 23.9 127 108 30.2 90.7 20.6 19.1 4
3 1/2″ in. 8.5 0.94 5.5 4.81 1.25 4.07 8 0.75 11
mm. 215.9 23.9 139.7 122.2 31.8 103.4 19.1 5
4″ in. 9 0.94 6.19 5.31 1.31 4.57 8 0.75 13
mm. 228.6 23.9 157.2 134.9 33.3 116.1 19.1 6
5″ in. 10 0.94 7.31 6.44 1.44 5.66 8 0.88 15
mm. 254 23.9 185.7 163.6 36.6 143.8 22.4 7
6″ in. 11 1 8.5 7.56 1.56 6.72 8 0.88 19
mm. 279.4 25.4 215.9 192 39.6 170.7 22.4 9
8″ in. 13.5 1.12 10.62 9.69 1.75 8.72 8 0.88 30
mm. 342.9 28.4 269.7 246.1 44.5 221.5 22.4 14
10″ in. 16 1.19 12.75 12 1.94 10.88 12 1 43
mm. 406.4 30.2 323.9 304.8 49.3 276.4 25.4 20
12″ in. 19 1.25 15 14.38 2.19 12.88 12 1 64
mm. 482.6 31.8 381 365.3 55.6 327.2 25.4 29
14″ in. 21 1.38 16.25 15.75 2.25 14.14 12 1.12 90
mm. 533.4 35.1 412.8 400.1 57.2 359.2 28.4 41
16″ in. 23.5 1.44 18.5 18 2.5 16.16 16 1.12 98
mm. 596.9 36.6 469.9 457.2 63.5 410.5 28.4 44
18″ in. 25 1.56 21 19.88 2.69 18.18 16 1.25 130
mm. 635 39.6 533.4 505 68.3 461.8 31.8 59
20″ in. 27.5 1.69 23 22 2.88 20.2 20 1.25 165
mm. 698.5 42.9 584.2 558.8 73.2 513.1 31.8 75
24″ in. 32 1.88 27.25 26.12 3.25 24.25 20 1.38 220
mm. 812.8 47.8 692.2 663.4 82.6 616 35.1 100

Class 300 Socket Weld Flange Schedule Dimensions, 300# Socket Weld Flange Dimensions & Socket Weld Flange Dimensions class 300


ANSI, ASME, ASA B16.5 300lb/sq.in. SOCKET WELD FLANGE RF
Nominal Size Outside Diam. Thick. of Flange Diam. of Raised Face Diam of Hub at Base Length Thru Hub Diam. of Bore Depth of Socket No. of Holes Diam. of Holes Approx. Weight Pounds Kg
O C R X Y B D
1/2″ in. 3.75 0.56 1.38 1.5 0.88 0.88 0.38 4 0.62 2
mm. 95.3 14.2 35.1 38.1 22.4 22.4 9.7 15.7 1
3/4″ in. 4.62 0.62 1.69 1.88 1 1.09 0.44 4 0.75 3
mm. 117.3 15.7 42.9 47.8 25.4 27.7 11.2 19.1 1
1″ in. 4.88 0.69 2 2.12 1.06 1.36 0.5 4 0.75 3
mm. 124 17.5 50.8 53.8 26.9 34.5 12.7 19.1 1
1 1/4″ in. 5.25 0.75 2.5 2.5 1.06 1.7 0.56 4 0.75 4
mm. 133.4 19.1 63.5 63.5 26.9 43.2 14.2 19.1 2
1 1/2″ in. 6.12 0.81 2.88 2.75 1.19 1.95 0.62 4 0.88 6
mm. 155.4 20.6 73.2 69.9 30.2 49.5 15.7 22.4 3
2″ in. 6.5 0.88 3.62 3.31 1.31 2.44 0.69 8 0.75 7
mm. 165.1 22.4 91.9 84.1 33.3 62 17.5 19.1 3
2 1/2″ in. 7.5 1 4.12 3.94 1.5 2.94 0.75 8 0.88 10
mm. 190.5 25.4 104.6 100.1 38.1 74.7 19.1 22.4 5
3″ in. 8.25 1.12 5 4.62 1.69 3.57 0.81 8 0.88 13
mm. 209.6 28.4 127 117.3 42.9 90.7 20.6 22.4 6
3 1/2″ in. 9 1.19 5.5 5.25 1.75 4.07 8 0.88 17
mm. 228.6 30.2 139.7 133.4 44.5 103.4 22.4 8
4″ in. 10 1.25 6.19 5.75 1.88 4.57 8 0.88 22
mm. 254 31.8 157.2 146.1 47.8 116.1 22.4 10
5″ in. 11 1.38 7.31 7 2 5.66 8 0.88 28
mm. 279.4 35.1 185.7 177.8 50.8 143.8 22.4 13
6″ in. 12.5 1.44 8.5 8.12 2.06 6.72 12 0.88 39
mm. 317.5 36.6 215.9 206.2 52.3 170.7 22.4 18
8″ in. 15 1.62 10.62 10.25 2.44 8.72 12 1 58
mm. 381 41.1 269.7 260.4 62 221.5 25.4 26
10″ in. 17.5 1.88 12.75 12.62 2.62 10.88 16 1.12 81
mm. 444.5 47.8 323.9 320.5 66.5 276.4 28.4 37
12″ in. 20.5 2 15 14.75 2.88 12.88 16 1.25 115
mm. 520.7 50.8 381 374.7 73.2 327.2 31.8 52
14″ in. 23 2.12 16.25 16.75 3 14.14 20 1.25 165
mm. 584.2 53.8 412.8 425.5 76.2 359.2 31.8 75
16″ in. 25.5 2.25 18.5 19 3.25 16.16 20 1.38 190
mm. 647.7 57.2 469.9 482.6 82.6 410.5 35.1 86
18″ in. 28 2.38 21 21 3.5 18.18 24 1.38 250
mm. 711.2 60.5 533.4 533.4 88.9 461.8 35.1 113
20″ in. 30.5 2.5 23 23.12 3.75 20.2 24 1.38 315
mm. 774.7 63.5 584.2 587.2 95.3 513.1 35.1 143
24″ in. 36 2.75 27.25 27.62 4.19 24.25 24 1.62 475
mm. 914.4 69.9 692.2 701.5 106.4 616 41.1 215

Class 600 Socket Weld Flange Standard Dimensions, 600# Socket Weld Flange Dimensions & 600 lb Socket Weld Flange Dimensions


ANSI, ASME, ASA B16.5 600lb/sq.in. SOCKET WELD FLANGE
Nominal Size Outside Diam. Thick. of Flange Diam. of Raised Face Diam of Hub at Base Length Thru Hub Diam. of Bore Depth of Socket No. of Holes Diam. of Holes Approx. Weight Pounds Kg
O C R X Y B D
1/2″ in. 3.75 0.56 1.38 1.5 0.88 0.88 0.38 4 0.62 2
mm. 95.3 14.2 35.1 38.1 22.4 22.4 9.7 15.7 1
3/4″ in. 4.62 0.62 1.69 1.88 1 1.09 0.44 4 0.75 3
mm. 117.3 15.7 42.9 47.8 25.4 27.7 11.2 19.1 1
1″ in. 4.88 0.69 2 2.12 1.06 1.36 0.5 4 0.75 4
mm. 124 17.5 50.8 53.8 26.9 34.5 12.7 19.1 2
1 1/4″ in. 5.25 0.81 2.5 2.5 1.12 1.7 0.56 4 0.75 5
mm. 133.4 20.6 63.5 63.5 28.4 43.2 14.2 19.1 2
1 1/2″ in. 6.12 0.88 2.88 2.75 1.25 1.95 0.62 4 0.88 7
mm. 155.4 22.4 73.2 69.9 31.8 49.5 15.7 22.4 3
2″ in. 6.5 1 3.62 3.31 1.44 2.44 0.69 8 0.75 9
mm. 165.1 25.4 91.9 84.1 36.6 62 17.5 19.1 4
2 1/2″ in. 7.5 1.12 4.12 3.94 1.62 2.94 0.75 8 0.88 13
mm. 190.5 28.4 104.6 100.1 41.1 74.7 19.1 22.4 6
3″ in. 8.25 1.25 5 4.62 1.81 3.57 0.81 8 0.88 16
mm. 209.6 31.8 127 117.3 46 90.7 20.6 22.4 7
3 1/2″ in. 9 1.38 5.5 5.25 1.94 4.07 8 1 21
mm. 228.6 35.1 139.7 133.4 49.3 103.4 25.4 10
4″ in. 10.75 1.5 6.19 6 2.12 4.57 8 1 37
mm. 273.1 38.1 157.2 152.4 53.8 116.1 25.4 17
5″ in. 13 1.75 7.31 7.44 2.38 5.66 8 1.12 63
mm. 330.2 44.5 185.7 189 60.5 143.8 28.4 29
6″ in. 14 1.88 8.5 8.75 2.62 6.72 12 1.12 80
mm. 355.6 47.8 215.9 222.3 66.5 170.7 28.4 36
8″ in. 16.5 2.19 10.62 10.75 3 8.72 12 1.25 115
mm. 419.1 55.6 269.7 273.1 76.2 221.5 31.8 52
10″ in. 20 2.5 12.75 13.5 3.38 10.88 16 1.38 170
mm. 508 63.5 323.9 342.9 85.9 276.4 35.1 77
12″ in. 22 2.62 15 15.75 3.62 12.88 20 1.38 200
mm. 558.8 66.5 381 400.1 91.9 327.2 35.1 91
14″ in. 23.75 2.75 16.25 17 3.69 14.14 20 1.5 230
mm. 603.3 69.9 412.8 431.8 93.7 359.2 38.1 104
16″ in. 27 3 18.5 19.5 4.19 16.16 20 1.62 330
mm. 685.8 76.2 469.9 495.3 106.4 410.5 41.1 150
18″ in. 29.25 3.25 21 21.5 4.62 18.18 20 1.75 400
mm. 743 82.6 533.4 546.1 117.3 461.8 44.5 181
20″ in. 32 3.5 23 24 5 20.2 24 1.75 510
mm. 812.8 88.9 584.2 609.6 127 513.1 44.5 231
24″ in. 37 4 27.25 28.25 5.5 24.25 24 2 730
mm. 939.8 101.6 692.2 717.6 139.7 616 50.8 331
ASME B16.5 Class 300 Socket Weld Flange manufacturer in India? Buy from oldest EN 1092-1 Type 02 Carbon Steel Socket Weld Flange manufacturers in Mumbai. Aluminum Socket Weld Flange, AWWA C207 Socket Weld Flange A105 supplier

Socket Weld Flange Weight Table


ANSI, ASME, ASA B16.5 150lb/sq.in. SOCKET WELD FLANGE RF
Nominal Size Outside Diam. Thick. of Flanges Diam. of Raised Face Diam of Hub at Base Length Thru Hub Diam. of Bore Depth of Socket No. of Holes Diam. of Holes Diam. of Bolts Diam. of Bolt Circle Approx. Weight Pounds Kg
O C R X Y B D
1/2" in. 3.5 0.44 1.38 1.19 0.62 0.88 0.38 4 0.62 1/2 2.38 1
mm. 88.9 11.2 35.1 30.2 15.7 22.4 9.7 15.7 12.7 60.5 0.5
3/4" in. 3.88 0.5 1.69 1.5 0.62 1.09 0.44 4 0.62 1/2 2.75 2
mm. 98.6 12.7 42.9 38.1 15.7 27.7 11.2 15.7 12.7 69.9 1
1" in. 4.25 0.56 2 1.94 0.69 1.36 0.5 4 0.62 1/2 3.12 2
mm. 108 14.2 50.8 49.3 17.5 34.5 12.7 15.7 12.7 79.2 1
1 1/4" in. 4.62 0.62 2.5 2.31 0.81 1.7 0.56 4 0.62 1/2 3.5 3
mm. 117.3 15.7 63.5 58.7 20.6 43.2 14.2 15.7 12.7 88.9 1
1 1/2" in. 5 0.69 2.88 2.56 0.88 1.95 0.62 4 0.62 1/2 3.88 3
mm. 127 17.5 73.2 65 22.4 49.5 15.7 15.7 12.7 98.6 1
2" in. 6 0.75 3.62 3.06 1 2.44 0.69 4 0.75 5/8 4.75 5
mm. 152.4 19.1 91.9 77.7 25.4 62 17.5 19.1 15.9 120.7 2
2 1/2" in. 7 0.88 4.12 3.56 1.12 2.94 0.75 4 0.75 5/8 5.5 7
mm. 177.8 22.4 104.6 90.4 28.4 74.7 19.1 19.1 15.9 139.7 3
3" in. 7.5 0.94 5 4.25 1.19 3.57 0.81 4 0.75 5/8 6 8
mm. 190.5 23.9 127 108 30.2 90.7 20.6 19.1 15.9 152.4 4
3 1/2" in. 8.5 0.94 5.5 4.81 1.25 4.07   8 0.75 5/8 7 11
mm. 215.9 23.9 139.7 122.2 31.8 103.4   19.1 15.9 177.8 5
4" in. 9 0.94 6.19 5.31 1.31 4.57   8 0.75 5/8 7.5 13
mm. 228.6 23.9 157.2 134.9 33.3 116.1   19.1 15.9 190.5 6
5" in. 10 0.94 7.31 6.44 1.44 5.66   8 0.88 3/4 8.5 15
mm. 254 23.9 185.7 163.6 36.6 143.8   22.4 19.1 215.9 7
6" in. 11 1 8.5 7.56 1.56 6.72   8 0.88 3/4 9.5 19
mm. 279.4 25.4 215.9 192 39.6 170.7   22.4 19.1 241.3 9
8" in. 13.5 1.12 10.62 9.69 1.75 8.72   8 0.88 3/4 11.75 30
mm. 342.9 28.4 269.7 246.1 44.5 221.5   22.4 19.1 298.5 14
10" in. 16 1.19 12.75 12 1.94 10.88   12 1 7/8 14.25 43
mm. 406.4 30.2 323.9 304.8 49.3 276.4   25.4 22.2 362 20
12" in. 19 1.25 15 14.38 2.19 12.88   12 1 7/8 17 64
mm. 482.6 31.8 381 365.3 55.6 327.2   25.4 22.2 431.8 29
14" in. 21 1.38 16.25 15.75 2.25 14.14   12 1.12 1 18.75 90
mm. 533.4 35.1 412.8 400.1 57.2 359.2   28.4 25.4 476.3 41
16" in. 23.5 1.44 18.5 18 2.5 16.16   16 1.12 1 21.25 98
mm. 596.9 36.6 469.9 457.2 63.5 410.5   28.4 25.4 539.8 44
18" in. 25 1.56 21 19.88 2.69 18.18   16 1.25 1 1/8 22.75 130
mm. 635 39.6 533.4 505 68.3 461.8   31.8 28.6 577.9 59
20" in. 27.5 1.69 23 22 2.88 20.2   20 1.25 1 1/8 25 165
mm. 698.5 42.9 584.2 558.8 73.2 513.1   31.8 28.6 635 75
24" in. 32 1.88 27.25 26.12 3.25 24.25   20 1.38 1 1/4 29.5 220
mm. 812.8 47.8 692.2 663.4 82.6 616   35.1 31.8 749.3 100

BS 4504 PN10 Socket Weld Ring Joint Flange Dealer, Nickel Alloy 2500 Lb Socket Weld Flange manufacturer in India, Socket Weld Forged Flanges Traders, Buy Socket Weld Raised Face Flange for Raised Face connection. Exporter of DIN 86029 PN10 Duplex Steel Socket Weld Rtj Flange, Flat Face Socket Weld Flanges Wholesaler, Stockist of ASME B16.5 Hastelloy Socket Weld Sae Flange.

JIS Socket Weld Flange Dimensions


JIS B2220 10K Socket Weld Flange Dimensions, JIS 5K Blind Flange Dimensions

Nominal Size Outside diameter of flange Diameter of bolt hole centre circle Diamter of bolt hole Number of bolt Nominal desig-nation
of thread of bolt
Inside diameter Inside diameter Depth of socket Thickness of Flange Diameter of hub Small diameter side Diameter of hub Large diamter side Totle length of flange Radius of fillet
A D C h d0 d(18) S t a b T r
10
15
20
90
95
100
65
70
75
15
15
15
4
4
4
M12
M12
M12
17.8
22.2
27.7
12.7
16.1
21.6
10
10
13
12
12
14
23
27
33
26
30
36
16
16
20
4
4
4
25
32
40
125
135
140
90
100
105
19
19
19
4
4
4
M16
M16
M16
34.5
43.2
49.1
27.6
35.7
41.6
13
13
13
14
16
16
41
50
56
44
53
60
20
22
24
4
4
4
50
65
80
155
175
185
120
140
150
19
19
19
4
4
8
M16
M16
M16
61.1
77.1
90.0
52.9
67.9
80.7
16
16
16
16
18
18
69
86
99
73
91
105
24
27
30
4
4
4

Other Types of ASME B16.5 Socket Weld Flange Manufacturer in India


socket weld flange a105 aluminum socket weld flange
Duplex Steel socket weld rtj flange Hastelloy socket weld sae flange
ANSI B16.5 Class 150 Socket weld Flange Stainless Steel Socket weld Flange
socket weld raised face flange Flat Face Socket weld Flange
ANSI B16.5 Socket weld Flange socket weld ring joint flange
Socket weld Forged Flange ASTM A182 SS socket weld blind flange
Socket weld flange 600# socket weld flange
Nickel Alloy 2500 lb socket weld flange Carbon Steel Socket weld Flange
MSS SP-44 socket weld pipe flange Inconel socket weld reducing flange
ASME B16.5 socket weld blind flange ASME B16.5 socket weld flange ANSI B16.5
ASME B16.5 swrf flange ASME B16.5 swrf flange
socket weld flange ANSI B16.5 Copper Nickel SWRF Flange
Schedule 10 socket weld flange ASME B16.5 square socket weld flange
stainless steel socket weld flange din socket weld flange
ASME B16.5 SWRF Flanges Socket weld Raised Face Flanges
600# socket weld flange ASME B16.5 flat face socket weld flange
flat face socket weld flange socket weld flange lap joint flange
hydraulic socket weld flange ASME B16.5 socket weld hub flange
jis socket weld flange ring joint socket weld flange
ASME B16.5 600 lb socket weld flange ASME B16.5 150 lb socket weld flange
2500 lb socket weld flange class 1500 socket weld flange
ASME B16.5 class 600 socket weld flange ASME B16.5 class 300 socket weld flange
ASME B16.5 class 1500 socket weld flange ASME B16.5 class 150 socket weld flange
ASME B16.5 socket weld flange chart ASME B16.5 socket weld flange valve
SWRF flange schedule ASME B16.5 Socket Weld Flange
Products
  • Buttweld Fittings
  • Flanges
    • Welding Neck Flanges (WNRF)
    • Blind Flanges (BLRF)
    • Slip On Flanges (SORF)
    • Socket Weld Flanges (SWRF)
    • Lap Joint Flanges
    • Screwed/ Threaded Flanges
    • Spectacle Blind Flanges
    • Spades and Ring Spacers
    • Square Flanges
    • Orifice Flanges
    • Ring Type Joint Flanges (RTJ)
    • Plate Flanges
    • Reducing Flanges
    • ANSI/ ASME B16.5 Flanges
    • BS 10 Flanges
    • DIN Flanges
    • EN 1092-1 Flanges
    • JIS Flanges
  • Tube Fittings
  • Forged Fitting-Thread Fittings
  • Forged Fitting-Socket weld Fittings
Got any Questions?
Call us Today!
022 - 2389 2476 / 6639 4004
sales@excelmetal.net
Excel Metal & Engg. Industries © All Right Reserved.
