DIN 2503 PN25 Flange
Check Flange DIN 2503 PN25 dimensions and DIN 2503 PN25 Plate Flange Manufacturers in India
DIN 2503 PN25 Flange Manufacturer in India
View Flange DIN 2503 PN25 Dimensions
DIN 2503 PN25 Plate Flange Supplier in Mumbai
Manufacturer of DIN Stainless steel 2503 PN25 Flange in Mumbai, India, Check our upadted DIN 2503 PN 25 Plate Flange Price List
What is DIN 2503 PN25 Plate Flange ?

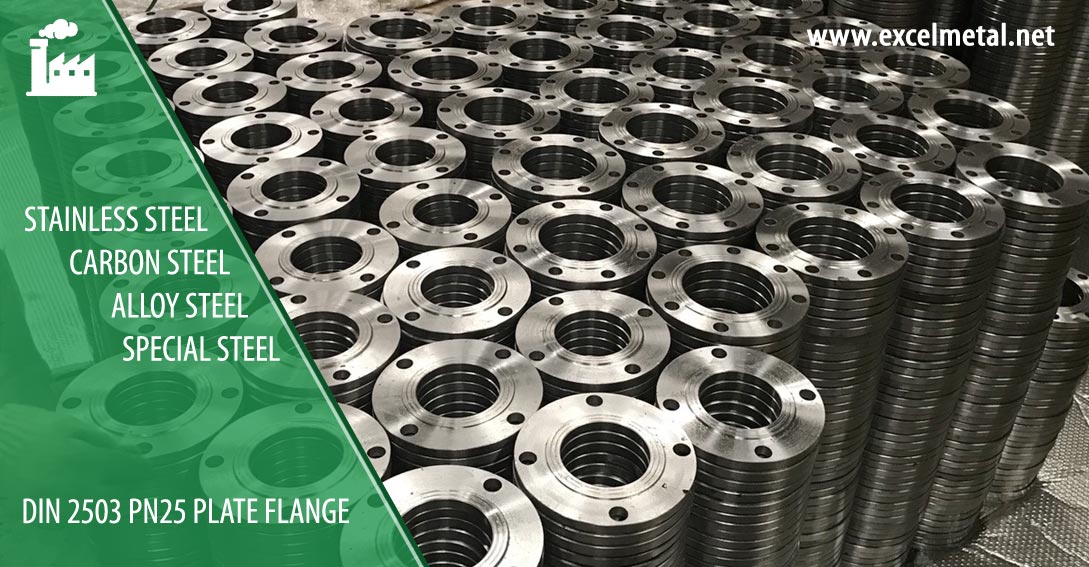

DIN 2503 PN25 Plate Flange Suppliers in India
DIN 2503 PN25 Flange Dimensions
Germany standard flange DIN 2503 for soldering or welding Nominal Pressure 25
DIN 2503 PN25 (in mm)
| Nominal Pipe Size | Diameter of | Flange Dia | Flange I.D | Thk of Flanges | Dia of Bolt Cirlce | No. of | Dia of Bolt Holes | Weight |
|---|---|---|---|---|---|---|---|---|
| DN | Pipe | D | D5 | B | K | holes | D2 | KG |
| 10 | 17.20 | 90 | 17.70 | 14 | 60 | 4 | 14 | 0.60 |
| 15 | 21.30 | 95 | 22.00 | 14 | 65 | 4 | 14 | 0.67 |
| 20 | 26.90 | 105 | 27.60 | 16 | 75 | 4 | 14 | 0.94 |
| 25 | 33.70 | 115 | 34.40 | 16 | 85 | 4 | 14 | 1.11 |
| 32 | 42.40 | 140 | 43.10 | 16 | 100 | 4 | 18 | 1.62 |
| 40 | 48.30 | 150 | 49.00 | 16 | 110 | 4 | 18 | 1.85 |
| 50 | 60.30 | 165 | 61.10 | 18 | 125 | 4 | 18 | 2.46 |
| 65 | 76.10 | 185 | 77.10 | 18 | 145 | 4 | 18 | 2.99 |
| 80 | 88.90 | 200 | 90.30 | 20 | 160 | 8 | 18 | 3.61 |
| 100 | 114.30 | 220 | 115.90 | 20 | 180 | 8 | 18 | 3.99 |
| 125 | 139.70 | 250 | 141.60 | 22 | 210 | 8 | 18 | 5.41 |
| 150 | 168.30 | 285 | 170.50 | 22 | 240 | 8 | 22 | 6.55 |
| 175 | 193.70 | 315 | 196.10 | 24 | 270 | 8 | 22 | 8.42 |
| 200 | 219.10 | 340 | 221.80 | 24 | 295 | 12 | 22 | 8.97 |
| 250 | 273.00 | 405 | 276.20 | 26 | 355 | 12 | 26 | 12.76 |
| 300 | 323.90 | 460 | 327.60 | 28 | 410 | 12 | 26 | 16.60 |
| 350 | 355.60 | 520 | 359.70 | 30 | 470 | 16 | 26 | 24.08 |
| 400 | 406.40 | 580 | 411.00 | 32 | 525 | 16 | 30 | 30.20 |
| 450 | 457.00 | 640 | 462.30 | 38 | 585 | 20 | 30 | 41.67 |
| 500 | 508.00 | 715 | 513.60 | 38 | 650 | 20 | 33 | 52.87 |
| 600 | 610.00 | 840 | 616.50 | 42 | 770 | 20 | 36 | 77.58 |
| 700 | 711.00 | 910 | 716.00 | 44 | 840 | 24 | 36 | 77.13 |
| 800 | 813.00 | 1025 | 818.00 | 50 | 950 | 24 | 39 | 106.35 |
| 900 | 914.00 | 1125 | 920.00 | 54 | 1050 | 28 | 39 | 125.39 |
| 1000 | 1016.00 | 1255 | 1022.00 | 60 | 1170 | 28 | 42 | 177.99 |
Flange DIN 2503 PN25 Specification
| DIN 2503 PN25 Plate Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| DIN Carbon steel 2503 PN25 Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| DIN Stainless steel 2503 PN25 Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 DIN 2503 PN25 Plate Flange |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K DIN 2503 PN 25 dn 100 Flange |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar DIN Carbon steel 2503 PN25 Flange |
| Flange DIN 2503 PN25 Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN 2503 PN 25 Plate Flange |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar DIN 2503 PN 25 Plate Flange |
| Most common types of DIN 2503 PN25 Flange | Forged / Threaded / Screwed / Plate |
| DIN 2503 PN25 Plate Flange Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| DIN 2503 PN 25 dn 100 Flange Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized DIN 2503 PN25 Plate Flange |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| DIN Alloy steel 2503 PN25 Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Origin | Indian / West Europe / Japan / USA / Korean |
| DIN Carbon steel 2503 PN25 Flange Uses & application |
|
| DIN Alloy steel 2503 PN25 Flange Export to | Indonesia, Ukraine, India, Ireland, Singapore, Saudi Arabia, Spain, Dubai, Peru, Thailand, Korea, Iran, Canada, USA, Brazil, Egypt, Oman, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
DIN 2503 PN25 Plate Flange supplier in Mumbai, DIN carbon steel 2503 PN25 Flanges manufacturers in India, Check DIN 2503 PN 25 Flange Price in India.
One of the premier Quality Flange DIN 2503 PN25 manufacturers in India offer these DIN Carbon steel 2503 PN25 Flange as per standard. Excel Metal is an PED certified DIN Stainless steel 2503 PN25 Flange manufacturer & DIN 2503 PN25 Flanges Exporter in India
Price List of DIN 2503 PN 25 Flange
| DIN 2503 PN25 Plate Flange Type | DIN 2503 PN25 Flange Price in India | Flange DIN 2503 PN25 Price in Saudi Riyal | DIN Alloy steel 2503 PN25 Flange Price in UAE Dirham |
|---|---|---|---|
| DIN 2503 PN 16 PN25 Stainless steel plate flange | INR 394.20 | SAR 20.65 | AED 20.21 |
| Germany standard DIN 2503 PN25 DN600 plate flange | INR 789.20 | SAR 41.34 | AED 40.46 |
| DIN 2503 pn25 foregd carbon steel flange | INR 485.07 | SAR 25.41 | AED 24.87 |
| DIN 2503 PL Plate Flange PN25 | INR 565.18 | SAR 29.61 | AED 28.97 |
Please note this is an approx Price of DIN Stainless steel 2503 PN25 Flange in India. For final DIN 2503 PN25 Flange price in India please mail us.
DIN 2503 PN 25 Plate Flange Types
| DIN 2503 PN25 Weld Neck Flange | DIN 2503 PN25 Threaded Flange |
| DIN 2503 PN25 Forged Flange | DIN 2503 PN25 With 1/2 Npt Flange |
| DIN 2503 PN25 Socket Weld Flange | DIN 2503 PN25 With Threaded Hole Flange |
| DIN 2503 PN25 Blind Flange | DIN 2503 PN25 Weight 150# Flange |
| DIN 2503 PN25 Square Flange | DIN 2503 PN25 Rtj 1500 Flange |
| DIN 2503 PN25 Loose Flange | DIN 2503 PN25 Ring Type Joint Flange |
| DIN 2503 PN25 Pn16 Flange | DIN 2503 PN25 Flat Face Flange |
| DIN 2503 PN25 Pn10 Flange | DIN 2503 PN25 Slip On Flange |
| DIN 2503 PN25 Pn40 Flange | DIN 2503 PN25 Rtj 900 Flange |
| DIN 2503 PN25 Pn 160 Flange | DIN 2503 PN25 Rtj Flange |
| DIN 2503 PN25 Pn 64 Flange | DIN 2503 PN25 Npt Flange |
| DIN 2503 PN25 Dn150 Pn16 Flange | DIN 2503 PN25 Jis 5k Flange |
| DIN 2503 PN25 Din 2527 Flange | DIN 2503 PN25 Jis B2220 Flange |
| DIN 2503 PN25 Din En 1092-1 Flange | DIN 2503 PN25 Jis 10k Flange |
| DIN 2503 PN25 Din 2633 Flange | Kf DIN 2503 PN25 Flange |
| DIN 2503 PN25 Din 2576 Flange | DIN 2503 PN25 B16.47 Flange |
| DIN 2503 PN25 Expander Flange | DIN 2503 PN25 Groove & Tongue Flange |
| DIN 2503 PN25 Pn 2.5 Flange | DIN 2503 PN25 Pn 30 Flange |
| DIN 2503 PN25 Pn 60 Flange | DIN 2503 PN25 Pn 100 Flange |
| DIN 2503 PN25 Pn 250 Flange | DIN 2503 PN25 Pn 320 Flange |
| DIN 2503 PN25 CF8 Flange | DIN 2503 PN25 CF3 Flange |
| DIN 2503 PN25 CF8M Flange | DIN 2503 PN25 CF3M Flange |
Material of DIN Stainless steel 2503 PN25 Flange
| Carbon Steel DIN 2503 PN25 Flange | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80) |
| Stainless Steel DIN 2503 PN25 Flange | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
| Alloy Steel DIN 2503 PN25 Flange | ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91 |
| Titanium DIN 2503 PN25 Flange | ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5 |
| Copper DIN 2503 PN25 Flange | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
| Copper Nickel DIN 2503 PN25 Flange | ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Brass DIN 2503 PN25 Flange | 3602 / 2604 / H59 / H62 / etc. |
| Inconel DIN 2503 PN25 Flange | ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 DIN 2503 PN25 Flange |
| Hastelloy DIN 2503 PN25 Flange | ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
| Monel DIN 2503 PN25 Flange | ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Alloy 20 DIN 2503 PN25 Flange | ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Aluminium DIN 2503 PN25 Flange | 5052 /6061/ 6063 / 2017 / 7075 / etc. |
| Nickel DIN 2503 PN25 Flange | ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
| Duplex DIN 2503 PN25 Flange | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Super Duplex DIN 2503 PN25 Flange | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Incoloy DIN 2503 PN25 Flange | ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |
| 254 Smo DIN 2503 PN25 Flange | ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Nimonic DIN 2503 PN25 Flange | Nimonic 75, Nimonic 80A, Nimonic 90 |
| Other DIN 2503 PN25 Flange material | Tin bronze, Alumunum bronze, Lead bronze |
DIN Alloy steel 2503 PN25 Flanges suppliers in India, DIN 2503 PN 25 Plate Flange stockholder, DIN 2503 PN25 Flange wholesaler in Mumbai.
We Geared towards providing DIN 2503 PN 25 Plate Flange in bulk, Excel Metal holds a wide range of DIN 2503 PN 25 Flange in all Sizes and Dimensions, Reliable manufacturer and supplier of DIN 2503 PN25 Flanges and provide DIN 2503 PN 25 dn 100 Flange immediate despatch throughout India & globally.
Our Supplied DIN 2503 PN25 Flange in below Projects :
Pilipinas Shell Refinery Expansion Project, Batangas City, Philippines
Snam Rete Gas national transmission network Project,
Messina Strait, Italy
Bu Hasa Oil Field Expansion Project,
Abu Dhabi, United Arab Emirates (UAE)
Lake Charles Ethane Cracker and Derivatives Project, Louisiana, USA
Kitsault Energy Corridor and FLNG Export Terminal,
Kitsault, Canada
Kakinada Petrochemical Cluster Project,
Karnataka, India
Tapis Enhanced Oil Recovery (EOR),
Peninsular, Malaysia
Dampier to Bunbury Natural Gas Pipeline Project,
Burrup Peninsula, Australia
Rosebank Oil and Gas Field (United Kingdom), Shetland Islands, UK
Rayong Refinery Construction Project,
Rayong, Thailand
Master Gas System Expansion Project,
Yanbu, Saudi Arabia (KSA)
ExxonMobil’s Singapore Refinery,
Singapore Jurong, Singapore
Exporter of DIN 2503 PN25 Flange, DIN Alloy steel 2503 PN25 Flanges dealer. DIN 2503 PN 25 dn 100 Flange traders, DIN 2503 PN25 Plate Flange manufacturers in India.
Excel Metal is a manufacturer and supplier of DIN 2503 PN25 Plate Flange, DIN 2503 PN 25 Plate Flange offering at affordable price, built a distribution network with more then 65 countries globally.
