ANSI / ASME B16.9 Stainless Steel Short Radius Elbow
MSS SP-75 BS1640 Carbon Steel Short Radius Elbow, Bevel Ends ASME/ ANSI B16.9 Short Radius Elbow manufacturer in India
If you want to know how, by using what alloys, stainless steel short radius elbow is being manufactures, then not to worry at all, as excel metal will help you out with all these questions and you will get to know the perfect knowledge regarding this product. Agreed, that steel industry is a so vast that every day a new company is established with some of their own pros and cons. But till now, no one has broken the benchmark set by us.
ASME B16.9 Stainless Steel Short Radius Elbow
Carbon Steel SR Bw Elbow

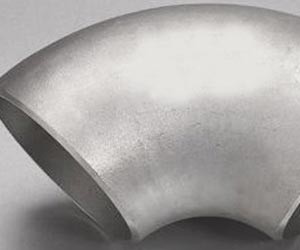

SS Short Radius Elbow Manufacturers in Mumbai
We are the one where ASME B16.9 Short Radius Elbow is manufactured under the highly-qualified team and experienced team. Our company is well-known in almost all the cities in Mumbai as well as in abroad too, we have maintained the status and thus we are connected with thousands of clients who deal with us every year. Be it a Stainless-steel short radius elbow or any other material, we are the first choice of the client. This is because we deliver the product on time and by satisfying all the requirements of our delegates.
Buttweld schedule 80 ASME B16.9 SR Bw Elbow stockist in Mumbai, India, Manufacturer of Short Radius Stainless Steel Elbow, ASME B16.9 Short Radius Elbow Dimensions in mm
We are the standard manufacturer of carbon steel short radius elbow. Our products are being supplied to industries such as chemical, engineering and lot more. The grades of this products are ASTM A234, ASME SA234 WPB, WPHY 42, WPHY 46, WPHY 52, WPH 60 and more. Dimensions of short radius pipe elbow differs accordingly. This is product is checked under an experienced team with advanced testing equipment. Therefore, we are one of the standard and quality manufacturers of short radius elbow stainless steel. AS now, we are clear with the product idea, the price range of ASME B16.9 Buttweld SR Pipe Elbow In India varies from industry to industry. We are given an exceptional price rates of this product which are worth to your pocket.
Table of Content
- What is ASME B16.9 Short Radius Elbow ?
- Specification of Short Radius Weld Elbow
- Price List of Sch 40 SR Elbow
- Types of Elbow 45 Deg SR
- ANSI B16.9 SR Bw Elbow
- MSS SP43 Short Radius Weld Elbow
- SA403 WP316 Short Radius Pipe Elbow
- ASME B16.9 Short Radius Elbow
- WP11 Schedule 10 Short Radius Elbow
- Stainless Steel Short Radius Elbow Sch 80
- ASME B16.9 Short Radius Elbow SCH 10
- Short Radius Elbow Sch 40
- A234 Gr WPB Short Radius Grooved Elbow
- Buttweld 10 Inch Short Radius Elbow
- Carbon Steel Short Radius Elbow Pipe Fittings
- Dimensions of Short Radius Street Elbow
- Dimensional Tolerances Of Schedule 10 Short Radius Elbow
What is ASME B16.9 Short Radius Elbow ?
ASME B16.9 Short Radius Elbow Suppliers in India
Let’s be clear with one thing, that there are two types of elbow, i.e. long radius elbow and short radius pipe elbow. So the radius of the curve which is equivalent to the outer diameter defines this product. Function of Buttweld SR Elbow is to change the direction or flow in the piping system. You might not be aware that there are some versions of this elbow i.e. 45 degree, 90 degree, schedule 40 short radius elbow dimensions and many others are found.
Specification of Short Radius Weld Elbow
| Range of different Sizes | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
|---|---|
| Specifications | ASME B16.9 Short Radius Elbows |
| Schedule 10 Short Radius Elbows Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Stock Various Size of Short Radius Bend Elbows Pipe Fittings | Seamless Butt Weld Fittings: 1/2 inch - 10 inch Welded Butt Weld Fittings: 1/2 inch - 48 inch |
| Application |
|
| Short Radius Street Elbows Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Types of Sch 40 SR Elbows | DN15 - DN1200 |
| Available Bending Radius of Stainless Steel Short Radius Elbows | R= 1D, 2D, 3D, 5D, 6D, 8D, 10D or Customized Fittings |
Carbon Steel SR Elbow exporter in India, 24 inch Sch 10 Short Radius Elbow supplier, ASME B16.9 Short Radius Sweep Elbow manufacturers, 1/2 to 48 Inch Short Radius Reducing Elbow wholesaler in Mumbai.
Price List of Sch 40 SR Elbow
| ASME B16.9 Short Radius Elbow Type | Stainless Steel Short Radius Elbow Price in India | Carbon Steel Short Radius Elbow Price in Saudi Riyal | ASME B16.9 Short Radius Elbow Price in UAE Dirham |
|---|---|---|---|
| 45° Elbows, SR, BW, Carbon Steel, ASTM A 234 Gr.WPB, ANSI/ ASME B16.9 | INR 163.76 | SAR 8.63 | AED 8.45 |
| 90° Elbows, SR, BW, Carbon Steel, ASTM A 234 Gr.WPB, ANSI/ ASME B16.9 | INR 206.48 | SAR 10.88 | AED 10.65 |
| 70° Elbows, SR, BW, Carbon Steel, ASTM A 234 Gr.WPB, ANSI/ ASME B16.9 | INR 299.04 | SAR 15.76 | AED 15.43 |
| 60° Elbows, SR, BW, Carbon Steel, ASTM A 234 Gr.WPB, ANSI/ ASME B16.9 | INR 427.20 | SAR 22.51 | AED 22.04 |
Types of Elbow 45 Deg SR
ANSI B16.9 SR Bw Elbow
MSS SP43 Short Radius Weld Elbow
SA403 WP316 Short Radius Pipe Elbow
ASME B16.9 Short Radius Elbow
WP11 Schedule 10 Short Radius Elbow
Stainless Steel Short Radius Elbow Sch 80
ASME B16.9 Short Radius Elbow SCH 10
Short Radius Elbow Sch 40
A234 Gr WPB Short Radius Grooved Elbow
Buttweld 10 Inch Short Radius Elbow
Carbon Steel Short Radius Elbow Pipe Fittings
A403 WPB SR Elbow
DIN 2605 12 Inch Short Radius Elbow
A403 Gr WP304 90 Degree Short Radius Pipe Elbow
Stainless Steel Short Radius Elbow 1.5d
ASTM A234 WP5 Short Radius Steel Elbow
Dimensions of Short Radius Street Elbow

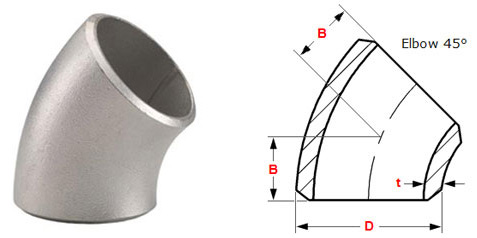

ASME B16.5 Short Radius 45 Degree Elbows Dimensions
| NPS | O.D. D |
45 degrees 3D Center-to-End A |
45 degrees Short Radius Center-to-End A |
| 1/2 | 21.3 | - | 38 |
| 3/4 | 26.7 | 57 | 38 |
| 1 | 33.4 | 76 | 38 |
| 1¼ | 42.2 | 95 | 48 |
| 1½ | 48.3 | 114 | 57 |
| 2 | 60.3 | 152 | 76 |
| 2½ | 73 | 190 | 95 |
| 3 | 88.9 | 229 | 114 |
| 3½ | 101.6 | 267 | 133 |
| 4 | 114.3 | 305 | 152 |
| 5 | 141.3 | 381 | 190 |
| 6 | 168.3 | 457 | 229 |
| 8 | 219.1 | 610 | 305 |
| 10 | 273 | 762 | 381 |
| 12 | 323.8 | 914 | 457 |
| 14 | 355.6 | 1067 | 533 |
| 16 | 406.4 | 1219 | 610 |
| 18 | 457 | 1372 | 686 |
| 20 | 508 | 1524 | 762 |
| 22 | 559 | 1676 | 838 |
| 24 | 610 | 1829 | 914 |
| 26 | 660 | 1981 | 991 |
| 28 | 711 | 2134 | 1067 |
| 30 | 762 | 2286 | 1143 |
| 32 | 813 | 2438 | 1219 |
| 34 | 864 | 2591 | 1295 |
| 36 | 914 | 2743 | 1372 |
| 38 | 965 | 2896 | 1448 |
| 40 | 1016 | 3048 | 1524 |
| 42 | 1067 | 3200 | 1600 |
| 44 | 1118 | 3353 | 1676 |
| 46 | 1168 | 3505 | 1753 |
| 48 | 1219 | 3658 | 1829 |
ASME B16.9 Seamless Short Radius Grooved Elbow, Check Stainless Steel Short Radius Weld Elbow Price List, Short Radius Elbow Pipe Fittings suppliers in India. Carbon Steel Short Radius Elbow manufacturers
ASME B16.5 Short Radius 90 Degree Elbow Dimensions
| NPS | Center-to-End A |
O.D. D |
| 1 | 25 | 33.4 |
| 1¼ | 32 | 42.2 |
| 1½ | 38 | 48.3 |
| 2 | 51 | 60.3 |
| 2½ | 64 | 73 |
| 3 | 76 | 88.9 |
| 3½ | 89 | 101.6 |
| 4 | 102 | 114.3 |
| 5 | 127 | 141.3 |
| 6 | 152 | 168.3 |
| 8 | 203 | 219.1 |
| 10 | 254 | 273 |
| 12 | 305 | 323.8 |
| 14 | 356 | 355.6 |
| 16 | 406 | 406.4 |
| 18 | 457 | 457 |
| 20 | 508 | 508 |
| 22 | 559 | 559 |
| 24 | 610 | 610 |
ASME B 16.9 Buttweld 180° Short Radius Elbow Dimensions
| NPS | O.D. D |
180° Short Radius | |
| Back to Face K |
Center to Center O |
||
| 1/2 | 21.3 | - | - |
| 3/4 | 26.7 | - | - |
| 1 | 33.4 | 41 | 51 |
| 1¼ | 42.2 | 52 | 64 |
| 1½ | 48.3 | 62 | 76 |
| 2 | 60.3 | 81 | 102 |
| 2½ | 73 | 100 | 127 |
| 3 | 88.9 | 121 | 152 |
| 3½ | 101.6 | 140 | 178 |
| 4 | 114.3 | 159 | 203 |
| 5 | 141.3 | 197 | 254 |
| 6 | 168.3 | 237 | 305 |
| 8 | 219.1 | 313 | 406 |
| 10 | 273 | 391 | 508 |
| 12 | 323.8 | 467 | 610 |
| 14 | 355.6 | 533 | 711 |
| 16 | 406.4 | 610 | 813 |
| 18 | 457 | 686 | 914 |
| 20 | 508 | 762 | 1016 |
| 22 | 559 | 838 | 1118 |
| 24 | 610 | 914 | 1219 |
Looking for 90 Degree Short Radius Pipe Elbow dealer ? ANSI B 16.9 BS1640 10 Inch Short Radius Elbow traders, ASME Short Radius Elbow stockist, Exporter of Short Radius Bend Elbow. Short Radius Elbow Sch 40, Short Radius Elbow manufacturers in India
Dimensional Tolerances Of Schedule 10 Short Radius Elbow
| For all fittings | Elbows 180/45 deg | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Inside Øat End | Outside Øat Bevel | Wall Thicknesst / t1 | Center to End Dim. A-B-C-M | Center to Center Dim.O | Align- ment of EndsU | Back to Face Dim.K |
| 1/2 a 2 1/2 | 0,8 | 1 | Not | 2 | 7 | 1 | 7 |
| 3 a 3 1/2 | 1,6 | 1 | less | 2 | 7 | 1 | 7 |
| 4 | 1,6 | +2 -1 | than | 2 | 7 | 1 | 7 |
| 5 a 6 | 1,6 | +3 -1 | 87,50% | 2 | 7 | 1 | 7 |
| 8 | 1,6 | 2 | of nominal | 2 | 7 | 1 | 7 |
| 10 | 3,2 | +4 -3 | tickness | 2 | 7 | 2 | 7 |
| 12 a 18 | 3,2 | +4 -3 | 3 | 10 | 2 | 7 | |
| 20 a 24 | 4,8 | +6 -5 | 3 | 10 | 2 | 7 | |
| 26 a 30 | 4,8 | +7 -5 | 3 | ….. | ….. | ….. | |
| 32 a 48 | 4,8 | +7 -5 | 5 | ….. | ….. | ….. | |
| Angularity Tolerances | ||
| ND | Max off plane | Max off angle |
| P | Q | |
| 1/2 a 4 | 2 | 1 |
| 5 a 8 | 4 | 2 |
| 10 a 12 | 5 | 3 |
| 14 a 16 | 7 | 3 |
| 18 a 24 | 10 | 4 |
| 26 a 30 | 10 | 5 |
| 32 a 42 | 13 | 5 |
| 44 a 48 | 20 | 5 |
